How to connect to ELD

How to connect to ELD in the app?

To be able to work with the Mobile app, you need to be connected to your ELD first.

Steps to connect to ELD :

1. Turn on your engine and ELD. Ensure the lights on it are on and device is working.

2. Choose your co-driver and Choose Vehicle from the list that automatically appears

   • OR Go to Status page and click on the ELD connect sign

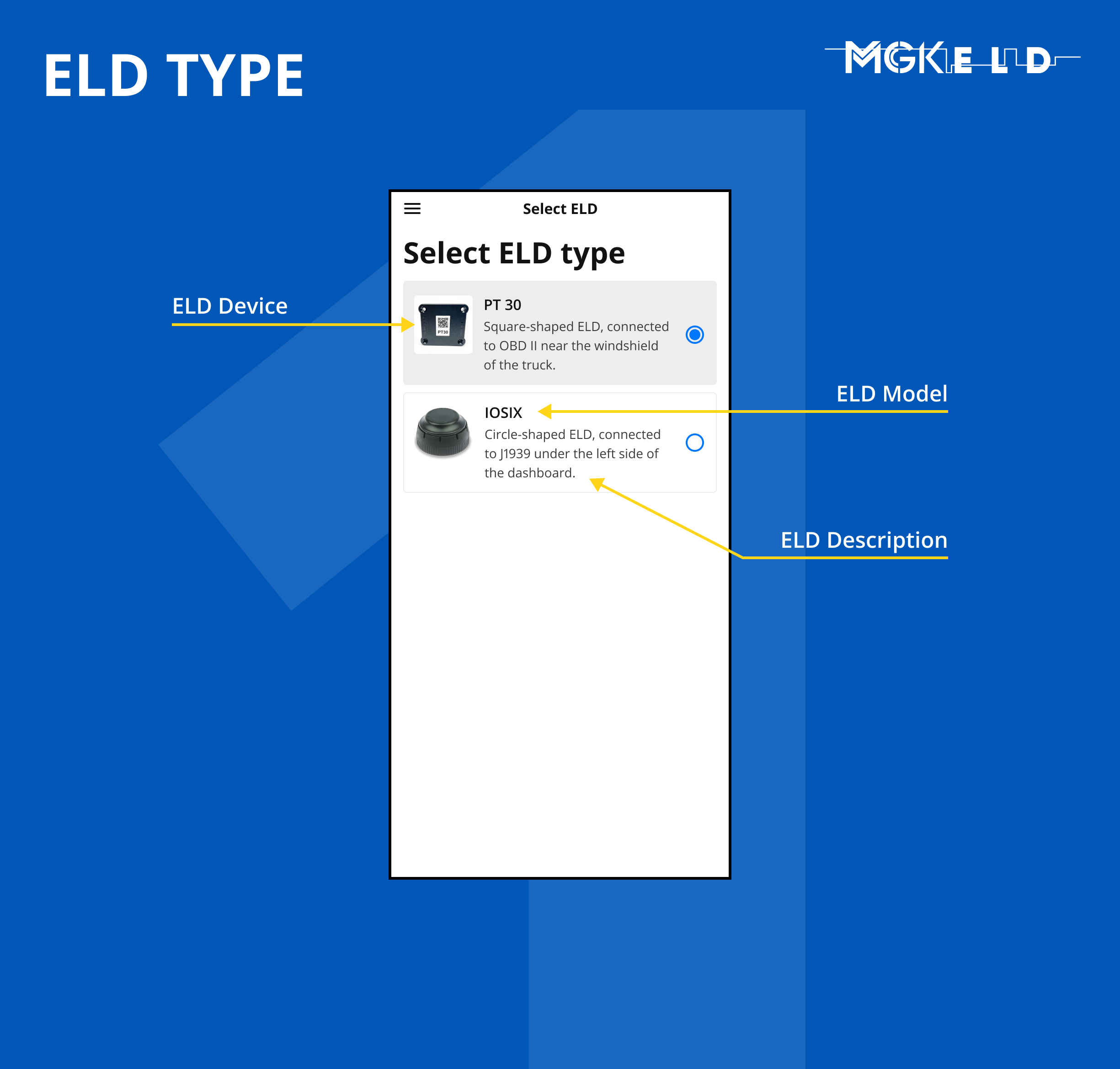

3. Select ELD type from the list

   • IF you see sign on top right corner of Connect ELD page, press on it and enable Bluetooth by going to your Settings

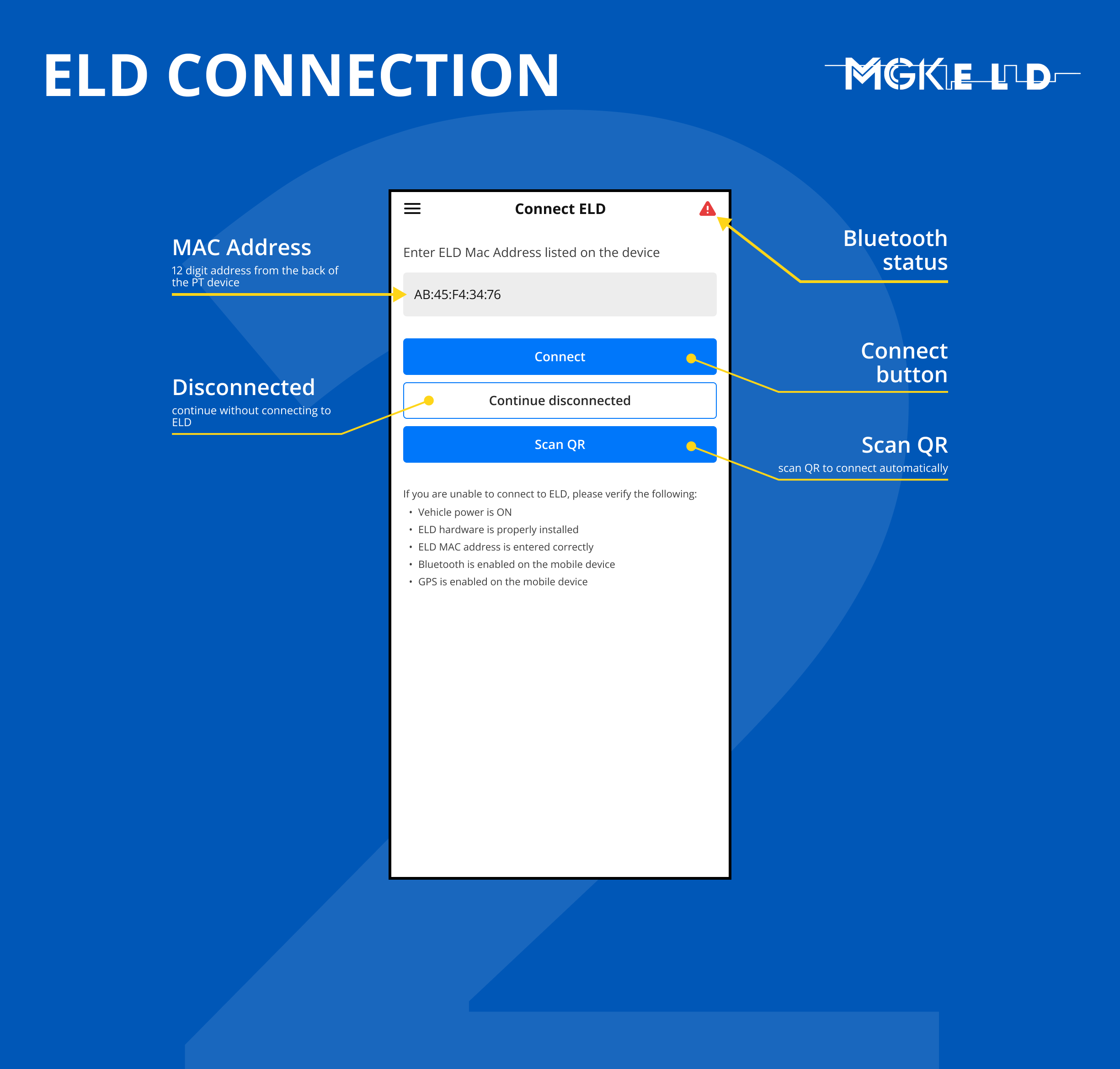

4. In the Connect ELD page enter the Mac Address that can be taken from the back of the PT device (12 digit address in the format e.g. 00:1A:2B:3C:4D:5E) - watch the instruction

   • OR press on Scan QR (QR code that is on the PT device front side) to connect automatically - watch the instruction
